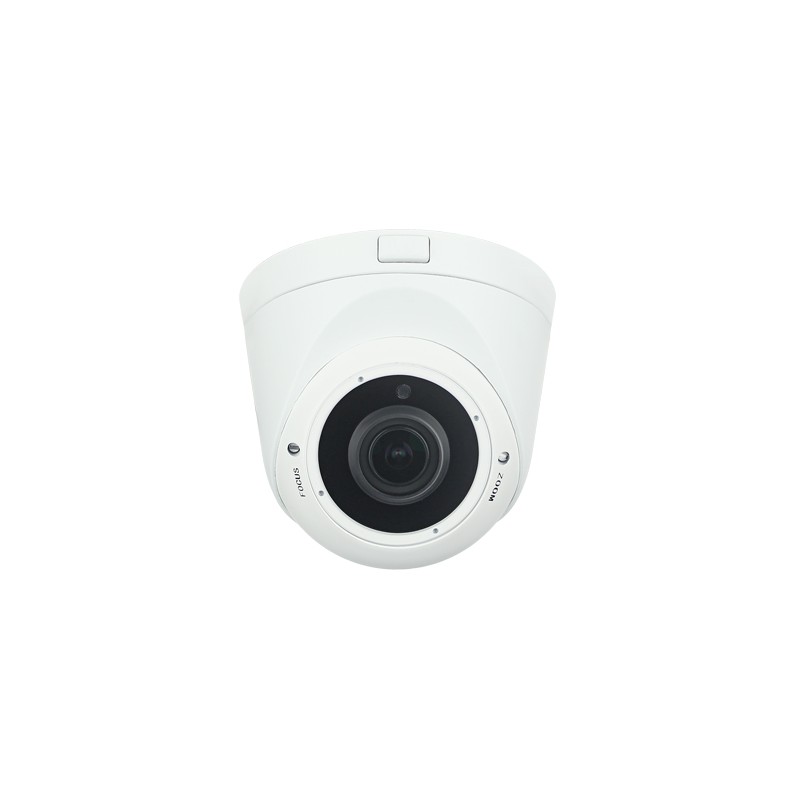

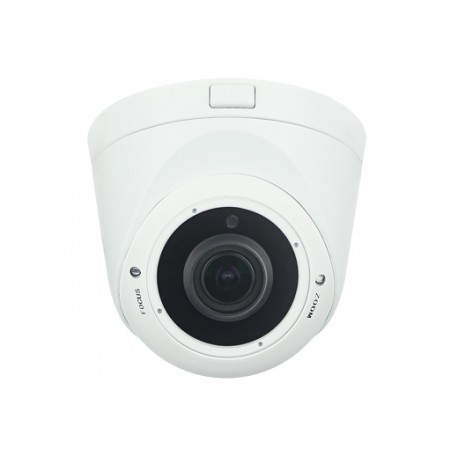

KDSHQ30HTC100B View larger

KDSHQ30HTC100B

AHD-SHQ30

New product

Dome HD Cameras (Fixed Lens)

Sensor+ISP
OV9732+HTC960E
1/4" OV 1.0MP CMOS Sensor, 720P, With IR-CUT, DWDR, DNR, UTC, OSD

Data sheet

Video Output 4in1 - AHD/CVI/TVI/CVBS
Image Sensor OV9732 Color CMOS 720p (1280x720) HD Image Sensor with OmniPixel3-HS™ Technology
Image resolution 05- 720P
Effective Pixels 1280(H)*720(V)
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Manual
Pixels 2M Pixels
IR LED 42µ x 6PCS
IR Distance 30M
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction DNR
Picture Adjustment Yes
WDR Yes
OSD Support Yes
UTC Yes
Housing IP66
Bracket Yes
IR Cut Filter Yes
Power Source 03- DC12V±10%, 700mA
Dimension ¢120x 104(H) mm
Weight 600g
OSD Menu Language Yes
DSP 04- HTC960E
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB
TV System PAL/NTSC
Scanning System Progressive Scan
Motor Iris Support NO
IR Status Under 10 Lux by CDS
IR Power On CDS Motor Control
Day/Night Yes
Dual Voltage No
Heater No
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
