KDDB12HTC100B

AHD-DB12

New product

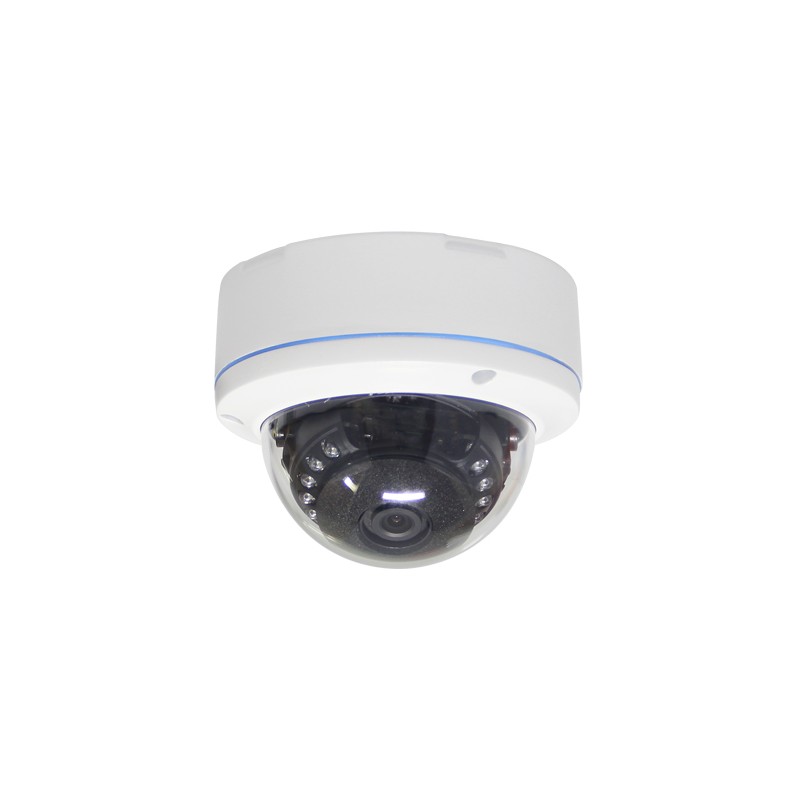

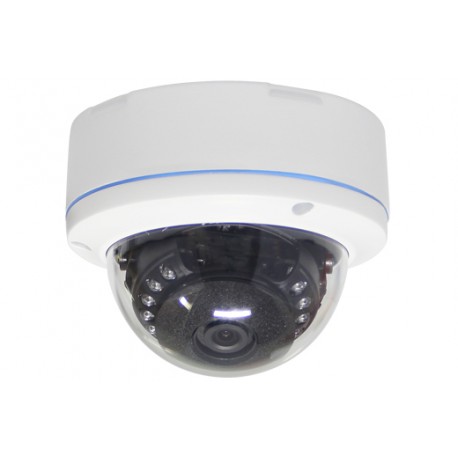

Dome HD Cameras (Fixed Lens)

Data sheet

Video Output 4in1 - AHD/CVI/TVI/CVBS
Image Sensor OV9732 Color CMOS 720p (1280x720) HD Image Sensor with OmniPixel3-HS™ Technology
Image resolution 05- 720P
Effective Pixels 1280(H)*720(V)
Focus Length 2.8-12mm
Focus Control Fixed
Lens Type Fixed
Pixels 2M Pixels
IR LED ¢5 x 15PCS
IR Distance 12M
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction DNR
Picture Adjustment Yes
WDR Yes
OSD Support Yes
UTC Yes
Housing Vandalproof & Weatherproof
Bracket Yes
IR Cut Filter Yes
Power Source 02- DC12V±10%, 500mA

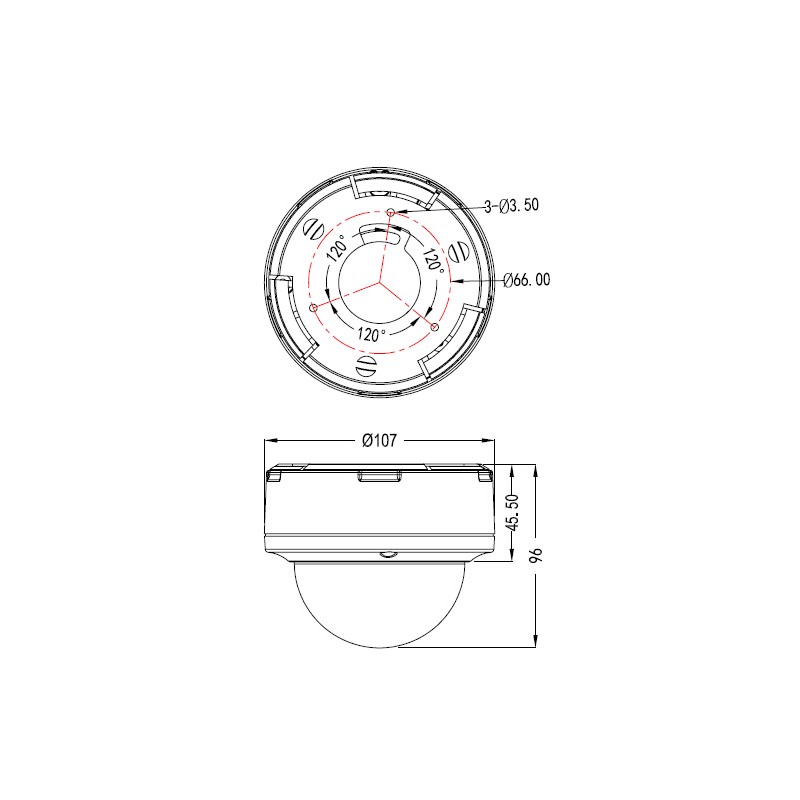

Dimension   ¢170 x 96(H) mm
Weight 500g
OSD Menu Language Yes
DSP 02- HTC1080E
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB
TV System PAL/NTSC
Scanning System Progressive Scan
Motor Iris Support NO
IR Status Under 10 Lux by CDS
IR Power On CDS Motor Control
Day/Night Yes
Dual Voltage No
Heater No
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
