JW3213 PON Optical Power Meter

JW3213

New product

EGP 152.00

More info

Product Description

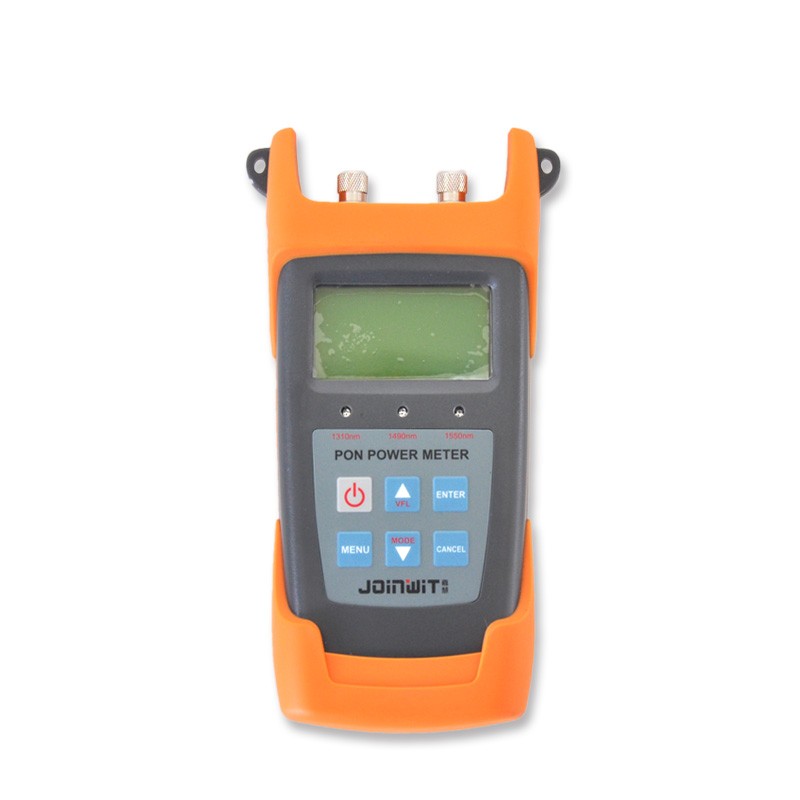

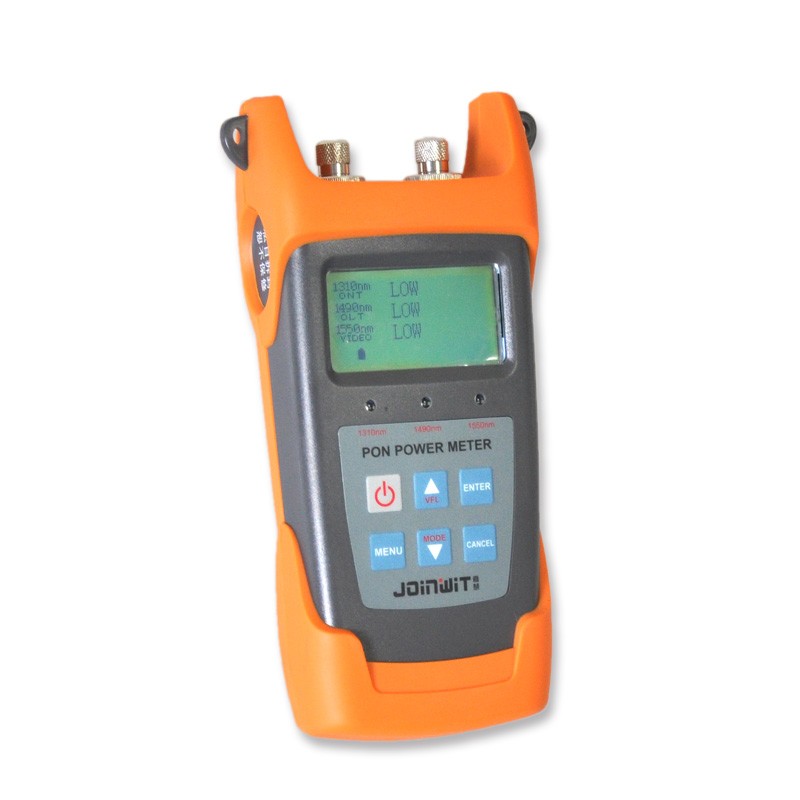

JW3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.

 Features for JW3213 core loss tester pon optical power meter price in china
* It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
* Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
* Used in Burst mode measurement of 1310nm upstream.
* Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
* USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
* With optical power meter modual, include 850、1300、1310、1490、1550、1625 sixs( 3213AP,3213A without 850nm wavelength);With visual fault locator modual(3213and3213AV)
* Optical power meter and VFL with one port.(only 3213A)
* Optional Chinese/English display.
* Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
* 10 minutes Auto-off function can be activated or deactivated
* Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
* Different models corresponding to different function, according to own use to choose .

Specification for JW3213 core loss tester pon optical power meter price in china

PON module:
JW3213
JW3213A
JW3213AV
JW3213AP
1310 upstream measurement
Pass Zone(nm)
1260nm~1360nm
MeasurementRange(dBm)
-40dBm~+10dBm
Output power(max)
15dBm
Isolation@1490/1550(dB)
>40dB
Burst mode measurement error
±0.5dB
1490 downstream measurement
Pass Zone(nm)
1470nm~1505nm
MeasurementRange(dBm)
-40dBm~+10dBm
Output power(max)
15dBm
Isolation@1310/1550(dB)
>40dB
1550 downstream measurement
Pass Zone(nm)
1535nm~1570nm
MeasurementRange(dBm)
-40dBm~+10dBm
Output power(max)
25dBm
Isolation@(1310/1490nm)
>40dB
Measurement Accuracy
Connatural uncertainty(dB)
±0.5dB
Linearity(dB)
±0.1dB
Passing through insertion Loss(dB)
<1.5dB
General Information
Detector Type
InGaAs
Optical Connector
FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type
SM 9/125um
Measurement Unit
dB/dBm/xW
Resolution (dB)
0.01dB
Operation Voltage(V)
DC 3.3V~5.5V
Power Supply
3pc1.5V battery
Continuously Operation time (h)
PON:90h
PON:90h
OPM:100h
VFL:50h
PON:90h
VFL:50h
PON:90h
OPM:100h
Operation Temperature(℃)
-10℃~60℃
Storage temperature(℃)
-25℃~70℃
Weight(kg)
423g
425g
424g
424g

Note: The operation time of the battery are all for the instrument that do not turn on back light, if the back light turn on the operation time will be shorted.

Normal Optical Power Meter Module:

Normal Optical Power Meter
JW3213
 JW3213A
 JW3213AP
Measurement Accuracy
Connatural uncertainty(dB
None
±0.5dB
Linearity(dB)
±0.1dB
Measurement Range(dBm)
-70dBm~+6dBm
General Information
Measurement Unit
None
dB/dBm
Resolution (dB)
0.01dB
Calibration Wavelength(nm)
1300/1310/ 1490/1550/1625
850/1300/1310/ 1490/1550/1625
Detector Type
InGaAs
Optical Connector
FC/SC/ST Interchangeable/2.5 universal adapter

Note:JW3213 do not have the OPM module

 VFL Module:

VFL
 JW3213
JW3213A
  JW3213AV
Output power
None
>0.5mW
Wavelength
650nm
Optical Connector
FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type
SM/MM

Note:JW3213 without VFL module

Standard Package for JW3213 core loss tester pon optical power meter price in china
Model
JW3213 PON power meter
Includes
JW3213 tester,User Manual,USB,Soft CD,1.5VAA Battery
