JW4103N Optical Talk Set

JW4103N

New product

EGP 760.00

More info

Product Description

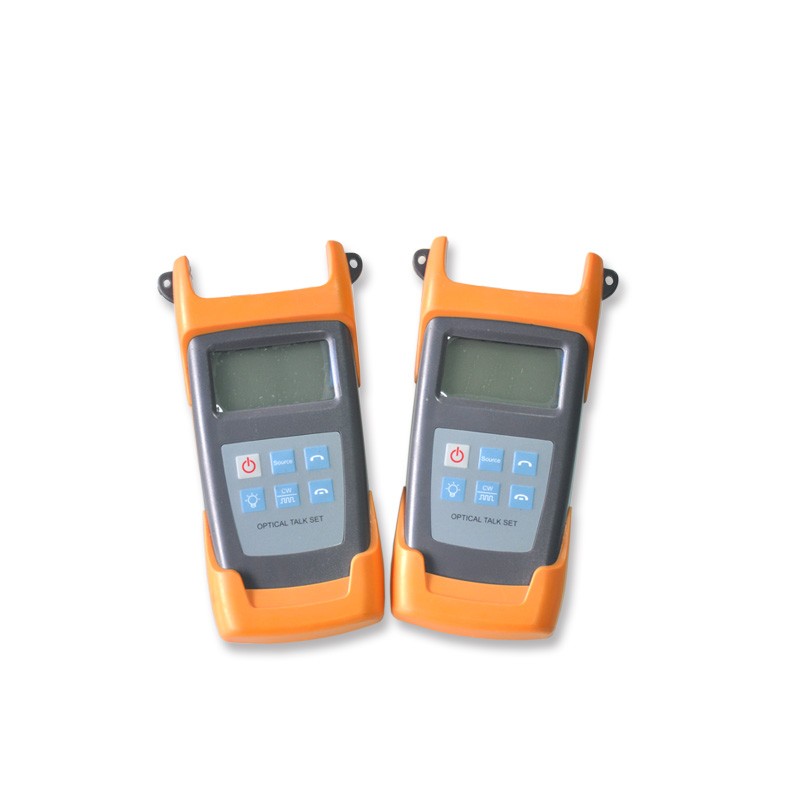

JW4103N Optical Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The JW4103N Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.

 Features for JW4103N Optical Talk Set


 * Full-duplex digital communication with high quality conversation connection and low background noise

* Together with Optical Clip-on Coupler, enables on line communications available
* Combining functions of both a digital optical phone call and a stabilized light source.
* Large LCD display with backlight
* Low battery power indication

Specification for JW4103N Optical Talk SetJW4103N Optical Talk Set

 Type
JW4103N Optical Talk Set
Wavelength(nm)
1310/1550
Emitter Type
FP-LD
Transmission Distance(KM)
≥100
Dynamic Range(dB)
≥ 33
Output Power(dB)
-5~-7
 Modulation(Hz)
CW,270,1K,2K
Output Stability (dB,30min,20 °C )
≤ 0.1
Power Supply
3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor
Battery Operating Time
5 hours

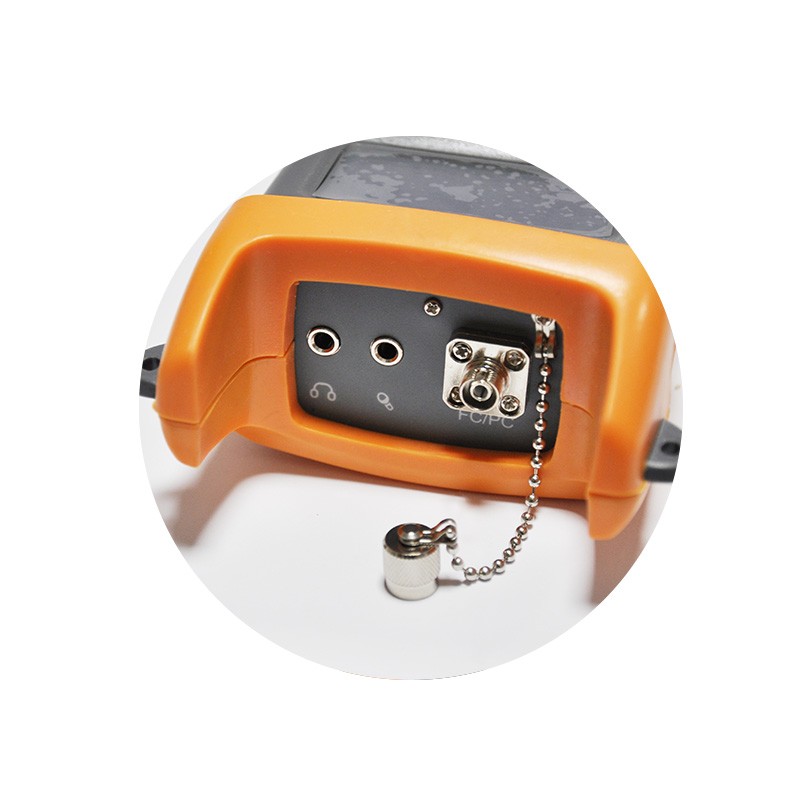

Optical Connector
FC/PC
Operating Temperature(°C)
-10 ~ +60
Storage Temperature(°C)
-25 ~ +70
Dimension(mm)
198X102X50
Weight(g)
310
Remark: Joinwit also provides Fiber Optic Clipon Coupler device according to customers needs
Standard Package for JW4103N Optical Talk Set
Model
JW4103N Optical Talk Set
Includes

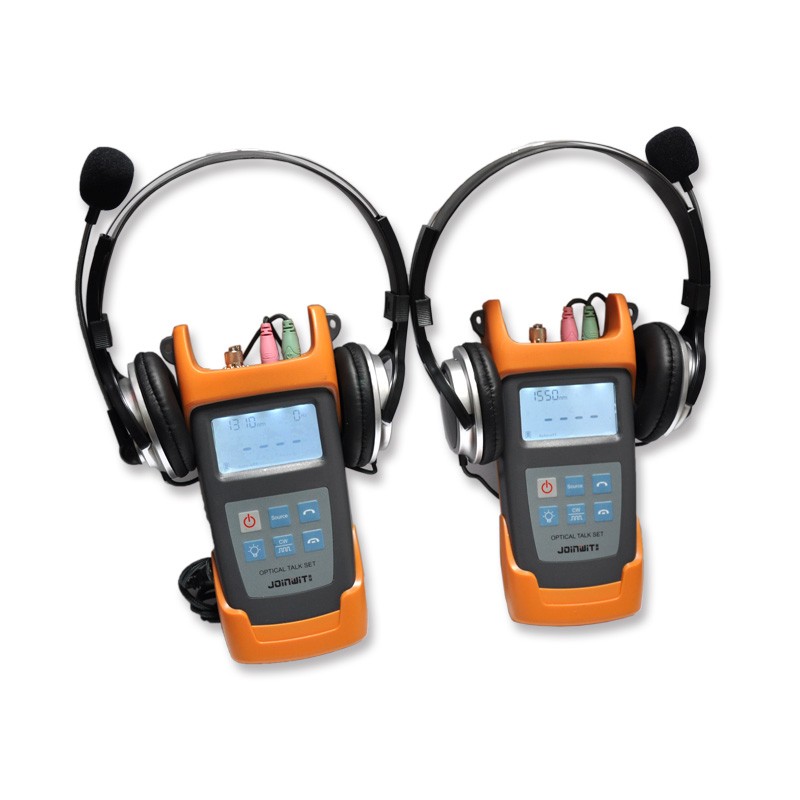

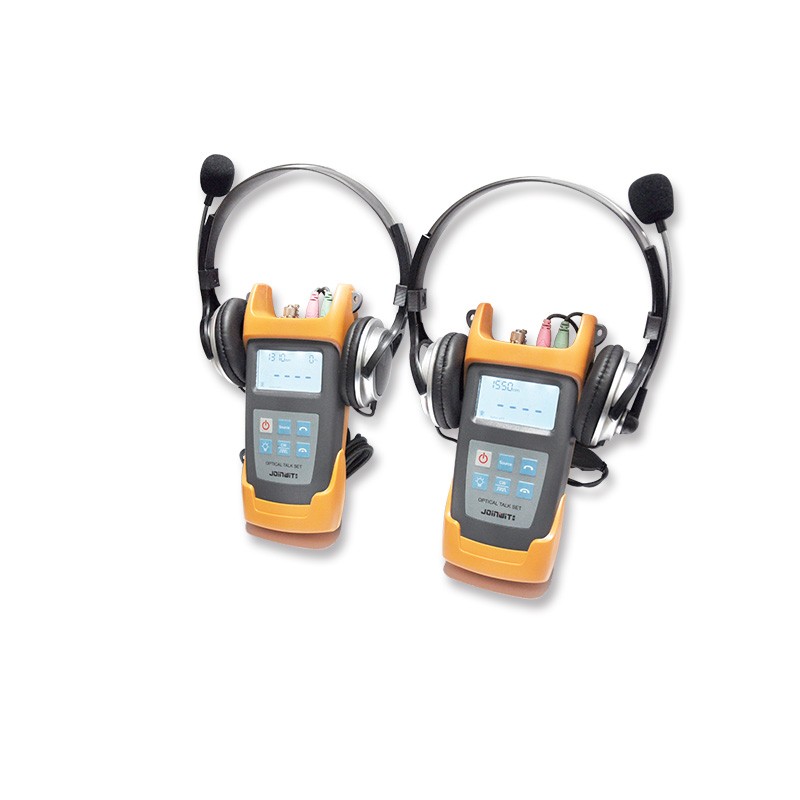

Optical Talk Set (pair), Headset, 3 pcs 1.5V Alkaline Batteries, 8.4V Power Supply Adaptor, User Manual, Cotton swabs and soft carrying case.
