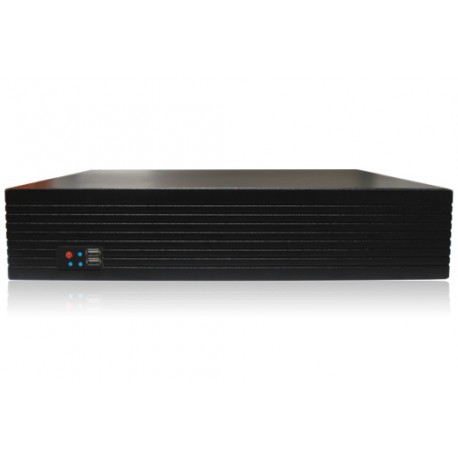

XVRL3231 View larger

XVRL3231

XVR

New product

Compression Method: H.264

Preview resolution: 1080P/720P

1xRS485, 2 × USB, 1 × IR Controller, 1xRJ45

Dimensions (L×W×H): 440*450*95(mm)

More details

More info

Model XVRL3231
System
Main Processor HI3531A
Operating System Embedded LINUX
Video
Input Anolog: 32*1080N
Anolog+Network: 30*Anolog(1080N)+2*network(Max 8MP), 28*Anolog(1080N)+4*network(Max 8MP), 26*Anolog(1080N)+6*network(Max 8MP), 24*Anolog(1080N)+8*network(Max 8MP), 22*Anolog(1080N)+10*network(Max 8MP), 20*Anolog(1080N)+12*network(Max 8MP), 18*Anolog(1080N)+14*network(Max 8MP), 16*Anolog(1080N)+16*network(Max 8MP)
14*Anolog(1080N)+18*network(Max 8MP), 12*Anolog(1080N)+20*network(Max 8MP),10*Anolog(1080N)+22*network(Max 8MP)
8*Anolog(1080N)+24*network(Max 8MP), 6*Anolog(1080N)+26*network(Max 8MP), 4*Anolog(1080N)+28*network(Max 8MP)
2*Anolog(1080N)+30*network(Max 8MP)
Network: 32*network(Max 8MP)(Total incoming bandwidth ≤160M)
Input 32CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/Network
Output 1HDMI,1 VGA, 1CVBS
Audio
Input 12 Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input 16 Channel
Output 4 Channel
Motion Detection 32 Channel
Trigger Events Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display
VGA Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080, 3840×2160
Display Split 32 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711A
Resolution Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate PAL:Half 1080P(960x1080 32*15fps),720P(1280×720 32*15fps), 960H(960×576 32*25fps)
NTSC:Half 1080P(960x1080 32*15fps),720P(1280×720 32*15fps), 960H(960×480 32*30fps)
Record Mode ManualTimerMotion Detectionalarm
Playback & Backup
Sync Playback Pure Anolog: 4CH 1080P@30fps
Mixture Mode:  4CH 1080P@30fps
Pure Network: 4CH 1080P@30fps, 2CH 5MP,  1CH 8MP
Remote Playback 4 Channel / 1Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 Channel
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8
Extra Stream D1/CIF(1~25fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 8 SATA Interface
Capacity 3.5" SATA, Up to 48TB
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control Support AHD Signal
USB Interface 2 USB 2.0 Interfaces
Power consumption AC 115~230v ≤35W (Without HDD)
Working Environment -10~55/10~90%
Dimension (W×D×H) 440*450*95(mm)
Weight 9.8kg (Without HDD)
