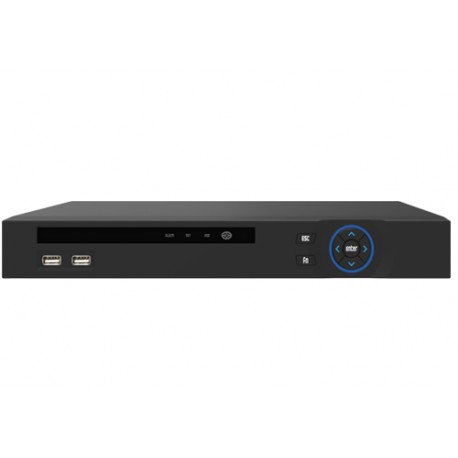

XVRA421 View larger

XVRA421

XVR

New product

Compression Method: H.264

Preview resolution: 3M/1080P/720P

2×USB ; 1xRS485;1xRJ45(10M/100M/1000M adaptive Ethernet interface)

Dimensions (L×W×H): 354*280*50(mm)

More details

More info

Model XVRA421
System
Main Processor HI3521A
Operating System Embedded LINUX
Video
Input Anolog: 4*4MP
Anolog+Network:2*Anolog(4MP)+7*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth
80M)
Input 4CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output 1 HDMI,1 VGA, 1CVBS
Audio
Input 4Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 4 Channel(max 9 Channel in pure network mode)
Trigger Events Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display
VGA Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711A
Resolution 4MP(2560×1440),3MP(2048×1536);1080P(1920×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate PAL:4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps);1080P(1920x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps
NTSC:4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps);1080P(1920x1080 4*30fps),720P(1280×720 4*30fps), 960H(960×480 4*30fps)
Record Mode ManualTimerMotion Detectionalarm
Playback & Backup
Sync Playback Pure Anolog:2CH 1080P@30fps, 4 CH 720P@30fps
Mixture Mode:  3CH 1080P@30fps
Pure Network: 4CH 1080P@30fps, 2CH 5MP,  1CH 8MP
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 Channel
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8
Extra Stream D1/CIF(1~25fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity 2.5"/3.5" SATA, Up to 12TB
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control Support AHD Signal
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V  ≤10W
Working Environment -10~55/10~90%
Dimension (W×D×H) 354*263*50(mm)
Weight 3.5kg (Without HDD)
