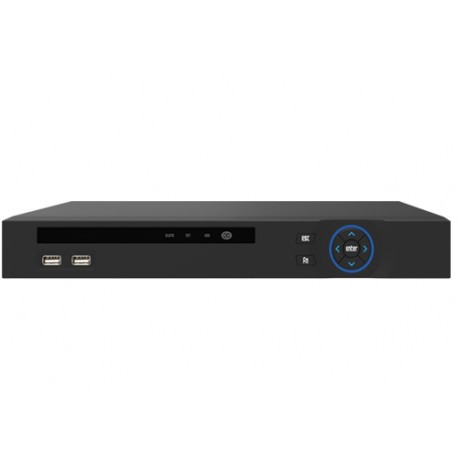

New CK-A9316PN View larger

CK-A9316PN

NVR

New product

IP Camera Input: 16CH
Incoming Bandwidth: 60MB
Compression Method: H.265/H.264
Dimensions (L×W×H): 354*280*50(mm)

More details

EGP 0.00

More info

Model CK-A9316PN
System
Main Processor ARM Cortex A7 Quad-core Processor
Operating System Embedded LINUX
Video
Input  16CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc),Incoming Bandwidth: 60MB
Output 1 VGA, 1 HDMI
Audio
Input 1 Port RCA
Output 1 Port RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 16 channel
Email Alarm Support
Display
VGA Resolution: 1920×1080/1280×1024/1280×720
HDMI Resolution:4K 3840×2160/1920×1080/1280×1024/1280×720
Display Split 9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom YES
OSD Camera Title, Time, Video Loss, Recording, Motion Detection
Recording
Video Compression H.265/H.264
Resolution 4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (704×576/704×480)
Record Rate PAL :4k@5×25fp,5MP@8×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
 NTSC: 4k@5×30fp,5MP@8×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record Mode ManualTimerMotion Detection
Playback & Backup
Local Sync Playback 1CH@4K/4CH@1080P
Remote Sync Playback YES
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P
Onvif Version Support Onvif 2.4
Web Browser IE6-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP / Windows Vista / Windows 7/ Windows 8
Cloud Support(P2P) Yes
Smart Phone iPhone, iPad, Android, Android Pad
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity Up to 12TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
USB Interface 2 USB 2.0 Interfaces
Power Supply DC12V/3A
Working Environment -10~55/10~90%
Dimension(W×D×H) 354mm×280mm×50mm
Weight 4.5KG (without HDD)
