> >>Open Slot Wiring Ducts
New Open Slot Wiring Ducts View larger

Online only

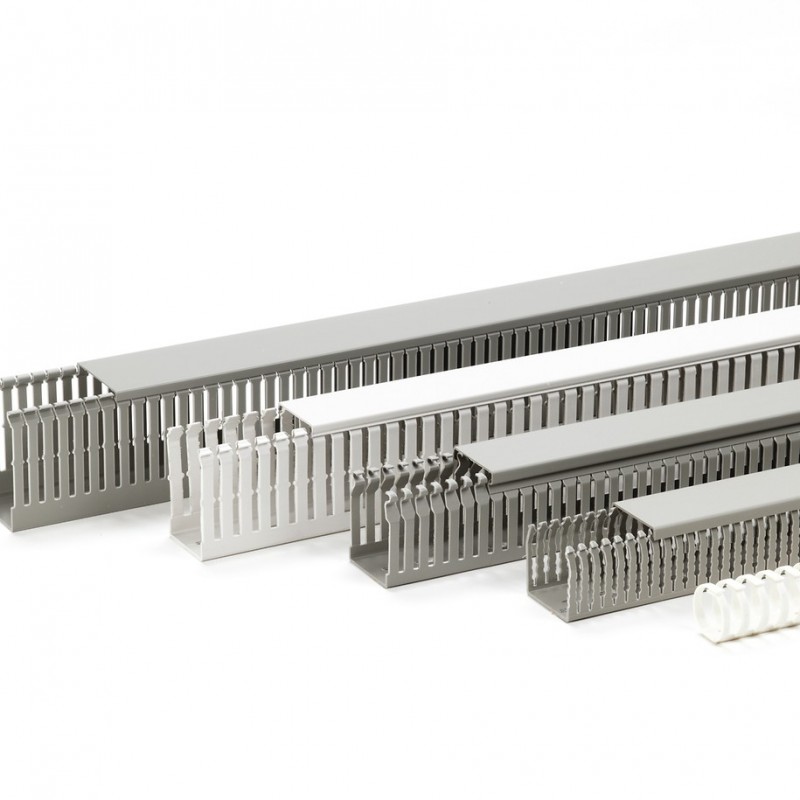

Open Slot Wiring Ducts

New product

● Standard colour Grey.
● Available in Black and colour.
● Minimum quantities apply.
● Also available in special cut lengths.
● For wiring duct with score line, add a "V" after part No. For example: WDV-1525.

More details

More info

SOLT：8mm		 0101-12t.jpg
SOLT：6mm		 0101-13t.jpg
SOLT：4mm
Size
WxH		 Length Wires to be Contained Part No.
4mm 6mm 8mm
15 x 25 2M 5~12 pcs  WD-1525-4 　  WD-1525-8
20 x 20 5~12 pcs  WD-2020-4 　  WD-2020-8
25 x 25 10~25 pcs  WD-2525-4 　  WD-2525-8
25 x 30 15~25 pcs  WD-2530-4 　  WD-2530-8
25 x 40 20~25 pcs  WD-2540-4 　  WD-2540-8
25 x 45 20~25 pcs  WD-2545-4  WD-2545-6  WD-2545-8
25 x 50 20~25 pcs  WD-2550-4 　  WD-2550-8
25 x 60 40~45 pcs  WD-2560-4 　  WD-2560-8
25 x 65 40~45 pcs  WD-2565-4  WD-2565-6  WD-2565-8
25 x 75 60~75 pcs  WD-2575-4 　  WD-2575-8
25 x 80 100~120 pcs  WD-2580-4 　  WD-2580-8
30 x 30 15~25 pcs  WD-3030-4 　  WD-3030-8
33 x 33 25~45 pcs  WD-3333-4  WD-3333-6  WD-3333-8
33 x 40 40~45 pcs  WD-3340-4 　  WD-3340-8
33 x 45 40~55 pcs  WD-3345-4  WD-3345-6  WD-3345-8
33 x 65 60~75 pcs  WD-3365-4  WD-3365-6  WD-3365-8
33 x 100 180~200 pcs 　 　  WD-33100-8
38 x 25 20~23 pcs 　 　  WD-3825-8
38 x 50 60~70 pcs  WD-3850-4 　  WD-3850-8
38 x 75 120~135 pcs  WD-3875-4 　  WD-3875-8
37.5 x 100 180~200 pcs 　 　  WD-38100-8
40 x 40 60~70 pcs  WD-4040-4  WD-4040-6  WD-4040-8
40 x 60 100~115 pcs  WD-4060-4  WD-4060-6  WD-4060-8
40 x 80 120~135 pcs  WD-4080-4 　  WD-4080-8
40 x 100 130~175 pcs  WD-40100-4 　  WD-40100-8
45 x 45 60~70 pcs  WD-4545-4  WD-4545-6  WD-4545-8
45 x 65 110~120 pcs  WD-4565-4  WD-4565-6  WD-4565-8
48 x 100 215~250 pcs  WD-48100-4  WD-48100-6  WD-48100-8
50 x 25 25~45 pcs  WD-5025-4 　  WD-5025-8
50 x 50 80~90 pcs  WD-5050-4 　  WD-5050-8
50 x 75 180~200 pcs  WD-5075-4 　  WD-5075-8
55 x 100 220~260 pcs 　 　  WD-55100-8
60 x 40 100~115 pcs  WD-6040-4 　  WD-6040-8
60 x 60 120~135 pcs  WD-6060-4  WD-6060-6  WD-6060-8
60 x 80 180~210 pcs  WD-6080-4 　  WD-6080-8
60 x 100 240~290 pcs  WD-60100-4 　  WD-60100-8
65 x 45 110~120 pcs  WD-6545-4  WD-6545-6  WD-6545-8
65 x 65 180~200 pcs  WD-6565-4  WD-6565-6  WD-6565-8
70 x 100 250~300 pcs 　 　  WD-70100-8
72 x 64 200~220 pcs 　 　  WD-7264-8
75 x 50 180~200 pcs  WD-7550-4 　  WD-7550-8
75 x 75 200~250 pcs 　 　  WD-7575-8
75 x 100 260~320 pcs 　 　  WD-75100-8
80 x 40 120~135 pcs  WD-8040-4 　  WD-8040-8
80 x 60 180~210 pcs  WD-8060-4 　  WD-8060-8
80 x 80 240~290 pcs  WD-8080-4 　  WD-8080-8
80 x 100 260~350 pcs  WD-80100-4 　  WD-80100-8
100 x 40 130~175 pcs  WD-10040-4 　  WD-10040-8
100 x 50 200~250 pcs 　 　  WD-10050-8
100 x 60 240~290 pcs  WD-10060-4 　  WD-10060-8
100 x 75 260~320 pcs 　 　  WD-10075-8
100 x 80 260~350 pcs  WD-10080-4 　  WD-10080-8
100 x 100 300~400 pcs  WD-100100-4  WD-100100-6  WD-100100-8
120 x 60 240~290 pcs  WD-12060-4 　  WD-12060-8
120 x 65 260~360 pcs  WD-12065-4 　  WD-12065-8
120 x 75 280~380 pcs 　 　  WD-12075-8
120 x 80 300~400 pcs  WD-12080-4 　  WD-12080-8
150 x 75 335~500 pcs 　 　  WD-15075-8
150 x 100 450~600 pcs 　 　  WD-150100-8
200 x 100 600~800 pcs 　 　  WD-200100-8
200 x 150 1040~1200 pcs 　 　  WD-200150-8
200 x 200 1200~1600 pcs 　 　  WD-200200-8
300 x 100 1040~1200 pcs 　 　  WD-300100-8
