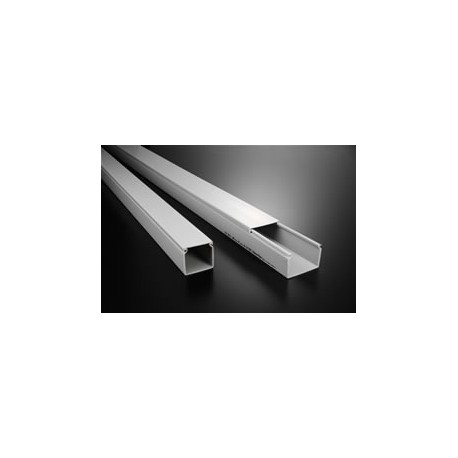

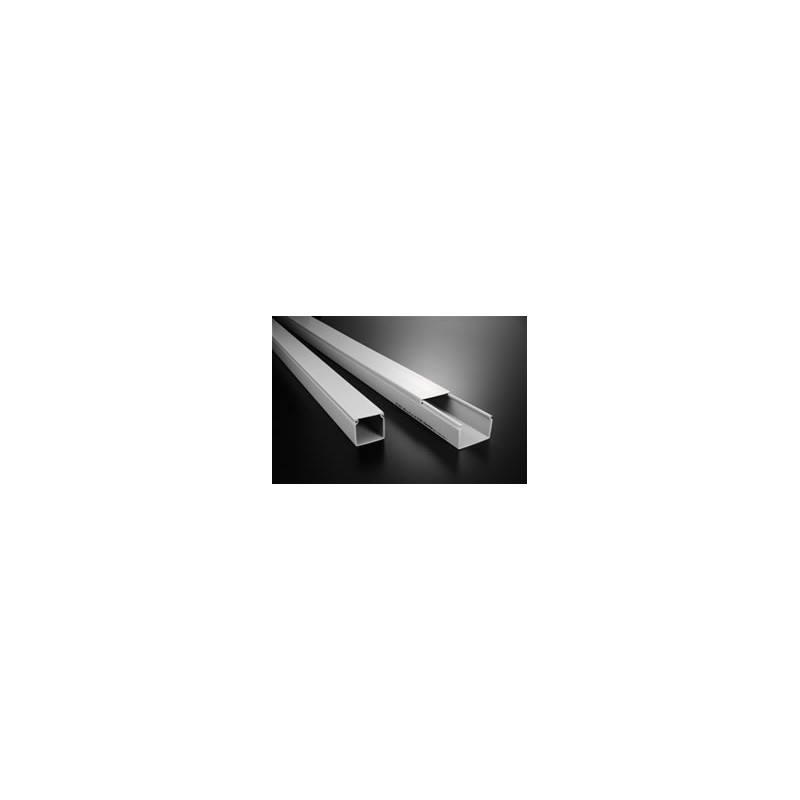

Solid Trunking

New product

More info

No soil design, for external wiring or where wire extraction is not necessary.
● Material: High impact, selt-extinguishing, warp-proof PVC.
● Color: Grey.
● Maximum service temperature: 85℃
● These deivces are for routing of wires within devices in factory installations where the suitability of use will be determined by UL during the end use investigatian.
● Features parallel holes on both sidewalls to facilate cutting in wire application.
● Special color, size, length upon request at reasonable quantity.



Part No. Size
WxH		 Wires to be Contained Length
 WD-1525-0 15 x 25 5~12 pcs 2M
 WD-1616-0 16 x 16 3~10 pcs
 WD-2020-0 20 x 20 5~12 pcs
 WD-2516-0 25 x 16 5~12 pcs
 WD-2525-0 25 x 25 10~25 pcs
 WD-3333-0 33 x 33 25~45 pcs
 WD-3340-0 33 x 40 40~45 pcs
 WD-3345-0 33 x 45 10~55 pcs
 WD-3816-0 38 x 16 12~30 pcs
 WD-3825-0 38 x 25 20~40 pcs
 WD-4020-0 40 x 20 20~40 pcs
 WD-4040-0 40 x 40 60~70 pcs
 WD-4060-0 40 x 60 100~115 pcs
 WD-4080-0 40 x 80 120~135 pcs
 WD-4545-0 45 x 45 60~70 pcs
 WD-4565-0 45 x 65 110~120 pcs
 WD-5025-0 50 x 25 25~45 pcs
 WD-5050-0 50 x 50 80~90 pcs
 WD-5075-0 50 x 75 180~200 pcs
 WD-6040-0 60 x 40 100~115 pcs
 WD-6060-0 60 x 60 120~135 pcs
 WD-6080-0 60 x 80 180~210 pcs
 WD-6545-0 65 x 45 110~120 pcs
 WD-6565-0 65 x 65 180~200 pcs
 WD-7540-0 75 x 40 120~135 pcs
 WD-7550-0 75 x 50 180~200 pcs
 WD-7575-0 75 x 75 200~250 pcs
 WD-8040-0 80 x 40 120~135 pcs
 WD-8060-0 80 x 60 180~210 pcs
 WD-8080-0 80 x 80 240~290 pcs
 WD-80100-0 80 x 100 260~350 pcs
 WD-10040-0 100 x 40 180~200 pcs
 WD-10050-0 100 x 50 200~250 pcs
 WD-10060-0 100 x 60 240~290 pcs
 WD-10075-0 100 x 75 260~320 pcs
 WD-100100-0 100 x 100 300~400 pcs
 WD-15075-0 150 x 75 335~500 pcs
 WD-150100-0 150 x 100 450~600 pcs
 WD-200100-0 200 x 100 600~800 pcs
 WD-300100-0 300 x 100 1010~1400 pcs
