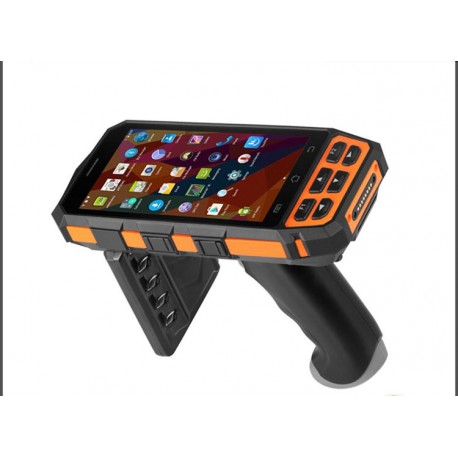

Rugged IP 65 Android 7.0 4G Barcode/RFID/Fingerprint Reader with 5.0 inch Gorilla Glass 3 9H Screen

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

170mm(H)x85mm(W)x23mm(D)±2 mm

Weight

Net Weight :1000g (including battery&wrist strap)

Display

5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 6 function keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 8000mAh

PERFORMANCE CHARACTERSTICS

CPU

Quad A53 1.3GHz quad-core

Operating System

Android 7.0

Storage

2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK

Handheld-Wireless Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

RFID READER(OPTIONAL)

RFID LF

               Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF/NFC

               Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

RFID UHF

              Frequency

865~868MHz or 920~925MHz

Protocol

EPC C1 GEN2/ISO 18000-6C

Antenna Gain

Circular antenna(2dBi)

R/W Range

Default: 6 m to 7 m(tags and environment dependent)

ThingMagic M6E Nano: 2 m to 3 m(tags and environment dependent)

ThingMagic M6E Micro: 6m to 8 m(tags and environment dependent)

Active 2.45GHz

Read range more than 200 m

FINGERPRINT READER(OPTIONAL)

Sensor

TCS1CT

Sensor type

Capacitive, area sensor

Resolution

508 DPI

Performance

FRR<0.008%, FAR<0.005%

Capacity

1000

PSAM SECURITY(OPTIONAL)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)
