New product

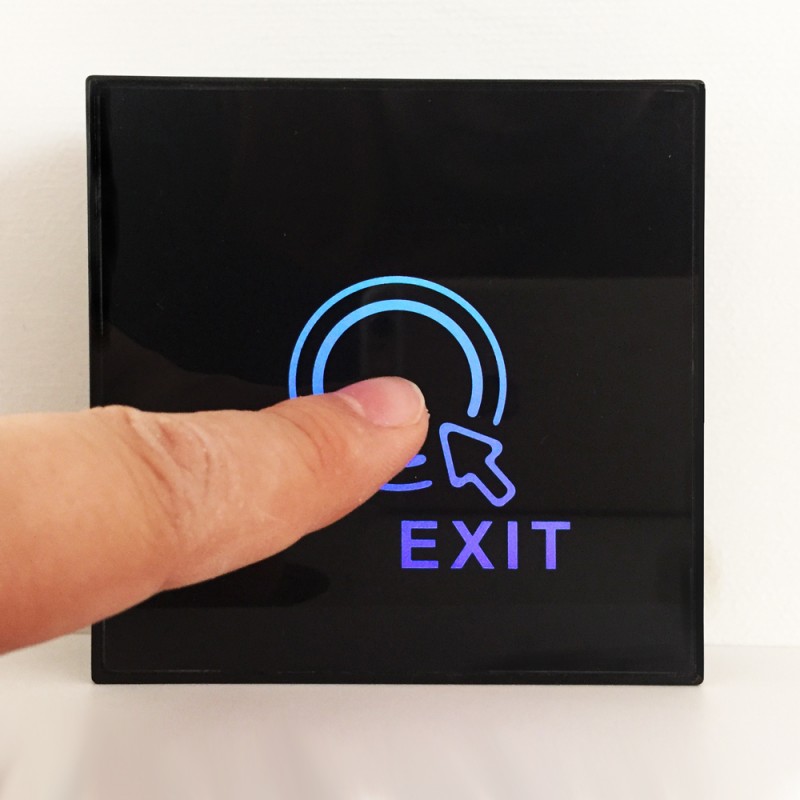

Model Number: E300 Item: 5cm IR Sensing No Touch Exit Button Technology: Infrared sensor technology LED Color: blue (Standby, door closed), green (Trigged, door opened) Power Supply: 9V -15V DC Maximum Sensing Range: 5 cm Output: NC/NO/COM Activation Time: 5 Second or as Long as Sensor i
Warning: Last items in stock!
Availability date:
Technology
|
Infrared sensor technology
|
||
LED Color
|
violet (Standby, door closed)
green (Trigged, door open)
|
||
Power Supply
|
9V -15VDC
|
||
Current
|
<40mA
|
||
Maximum Sensor Range
|
5 cm
|
||
Output
|
NC/NO/COM
|
||
Activation Time
|
5 Second or as Long as Sensor is Triggered
|
||
Housing Material
|
ABS
|
||
Operating Temperature
|
-10℃ to +65℃
|
||
Humidity
|
0~95% relative humidity noncondensing
|
||
Dimension
|
3.385" x 3.385" x 0.866" (8.6x 8.6 x 2.2 cm)
|
||
Weight
|
100g
|
Wire Color
|
Definition
|
Remarks
|
|
Red
|
VCC
|
Power +
|
|
Black
|
GND
|
Power -
|
|
Yellow
|
COM
|
Relay Com output
|
|
Orange
|
NC
|
Relay NC output
|
|
Brown
|
NO
|
Relay NO output
|
