Model Number: H5 Name: Multifunction Biometric Handheld Terminal for Fingerprint Enrollment Product name: Multifunction Biometric Handheld Terminal for Fingerprint Enrollment Standard Functions: GSM/GPRS Quad Band, 3G WCDMA, 4G FDD-LTE Display: 5"inch TFT, 854*480 LED high Camera: 8 Million Pixel, Auto-focus
Warning: Last items in stock!
Availability date:

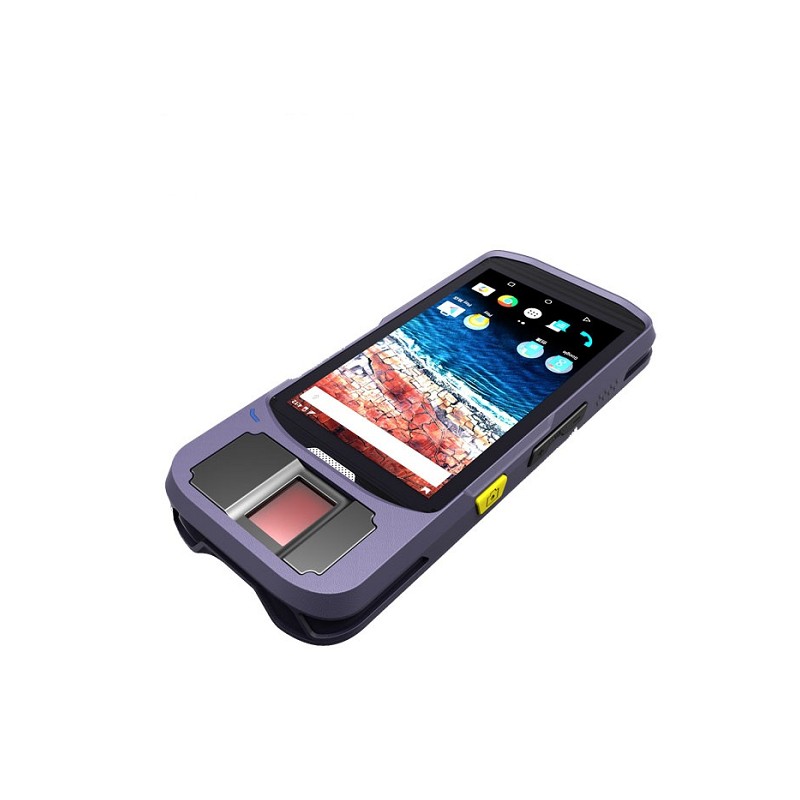

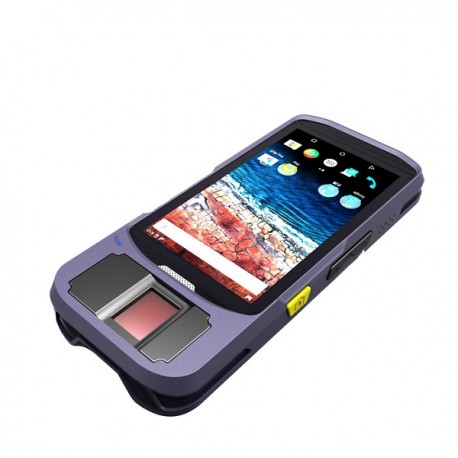

Multifunction Biometric Handheld Terminal for Fingerprint Enrollment
Handheld terminal H5 is a rugged and compact handheld terminal with exceptionally powerful abundant data collecting methods and state of art biometric technologies. It’s tailored for biometric verification and bio-enabled governmental application.
Multifunction Biometric Handheld Terminal for Fingerprint Enrollment
Product Feature
• Rugged design with Anti-skid design.
• 64 bit Quad Core fast processing CPU.
• FBI certified Fingerprint Scanner,FAP20,500DPI,Live Detection.
• Multiple communication method: GPRS,3G,4G LTE, WIFI, bluetooth.
• High Quality Photo Capture Capability.
• Addition PSAM Card Encryption Support.
• Built-in contactless card reader comply with 13.56MHZ, ISO14443 Type A/B, Mifare, NFC.
Multifunction Biometric Handheld Terminal for Fingerprint Enrollment
Brief Specification
• Android 5.1 Lollipop.
• CPU: 64 bit CPU Cortex-A53 Quad Core 1.3Ghz.
• Memory: 1 GB RAM, 8GB FLASH.
• GSM/GPRS Quad Band,3G WCDMA,4G FDD-LTE.
• Support Maximum 32GB extension.
• 5”inch TFT, 800*485 LED high brightness back light.
• 1 ON/OFF button, Quick Button for Camera, Volume Button.
• Camera: 5Million Pixel, Auto-focus.
• Fingerprint Reader:500dpi / 256 gray resolution, image Size: 300 x 400 pixels, WSQ Compression available, ISO19794-2, ANSI-378 template, FBI PIV, FBI Mobile ID FAP20, IP65 certified, Image Format ISO19794-4, support live finger detection, work under direct sunlight available.
• Contactless card reader: supports 13.56MHZ, ISO14443 Type A/B, Mifare.
• Battery: Li-ion battery,6000mah,3.7V.
• SAM slot: One PSAM slot , ISO 7816.
• SIM Slot: 2 SIM Slot.
• Wifi: 802.11 b/g/n.
• Interface: Power Input, USB Type A.
• Accessories: Hand strip (Optional).
• Dimension: 187mm×88mm×25mm (L×W×H).
Multifunction Biometric Handheld Terminal for Fingerprint Enrollment
Applications
• Public Service.
• Law Enforcement.
• Transport Delivery.
• Voter Verification.
• Fingerprint Enrollment.
• Time Attendance.
• And More...
Technical Parameter:
Physical Parameter |
|||
Type | Handheld Terminal | Keys | Power Button, Volume Button, Camera Quick Button |
Dimensions (L*W*D) | 182 mm x 81 mm x 25mm | Weight | 500g(Including Battery) |
Function Parameter | |||
Operating System | Android 5.1 | Memory |
1GB RAM, 8GB ROM (2GB RAM+16GB ROM available) |
CPU | MTK6735, 1.3Ghz, Quad Core | Camera |
Rear 8.0M Pixels, Auto Focus with Dual Flash(13MP could be customized), Front 2.0 M Pixels |
Memory and Extension | Micro SD Card, up to 32GB | Networks | GSM: 850/900/1800/1900 |
GPS | GPS,GLONASS supported,10m | WCDMA: B1/B2 | |
Bluetooth | BT 4.0 LE | CDMA: BC0 | |
WIFI | IEEE 802.11b/g/n | TDS-CDMA: B34/B39 | |
Display |
5 inch Display, Resolution 854*480 Capacitive touch screen |
FDD-LTE: B1/B3 | |
PSAM Card | 1 PSAM card slot, ISO7816 supported | TDD-LTE: B38/B39/B40/B41 | |
Function Module | |||
RFID(Optional) | 14443A/B, s50s70 cpu card, NFC, support E passport reading |
Contact Card Reader (Optional) |
ISO7816 Compatibility, Support CPU Card Reading |
Fingerprint Scanner |
500dpi / 256 gray resolution, image Size: 300 x 400 pixels, WSQ Compression available, ISO197942, ANSI378 template, FBI PIV, FBI Mobile ID FAP20, IP65 certified, Image Format ISO19794-4, support live finger detection, work under direct sunlight available. |
Iris Scanner(Optional) |
ISO/IEC 19794-6 and ISO 8583, |
Other Parameter | |||
Battery Pack | 3.7V, 5000mAh | Charging interface | DC 5V 1.5A |
USB | Mini- USB 10pin | Speaker | Supported |
Voice Call | Supported | Reliability | MTBF no less than 5000 hours |
Usage Environment | |||
Operating Temp | 0℃~50℃ | Working humidity | 10% ~90%RH(40℃) |
Storage Temp | -10℃~60℃ | Storage humidity | 5% ~90%RH |
