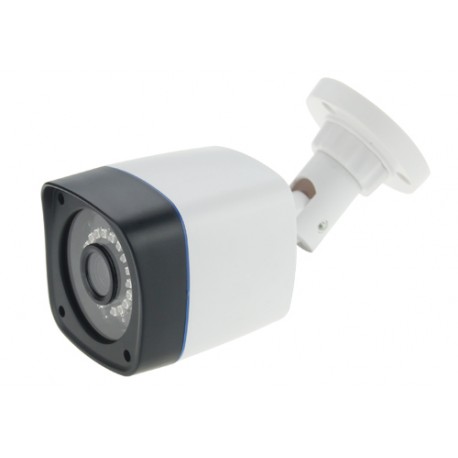

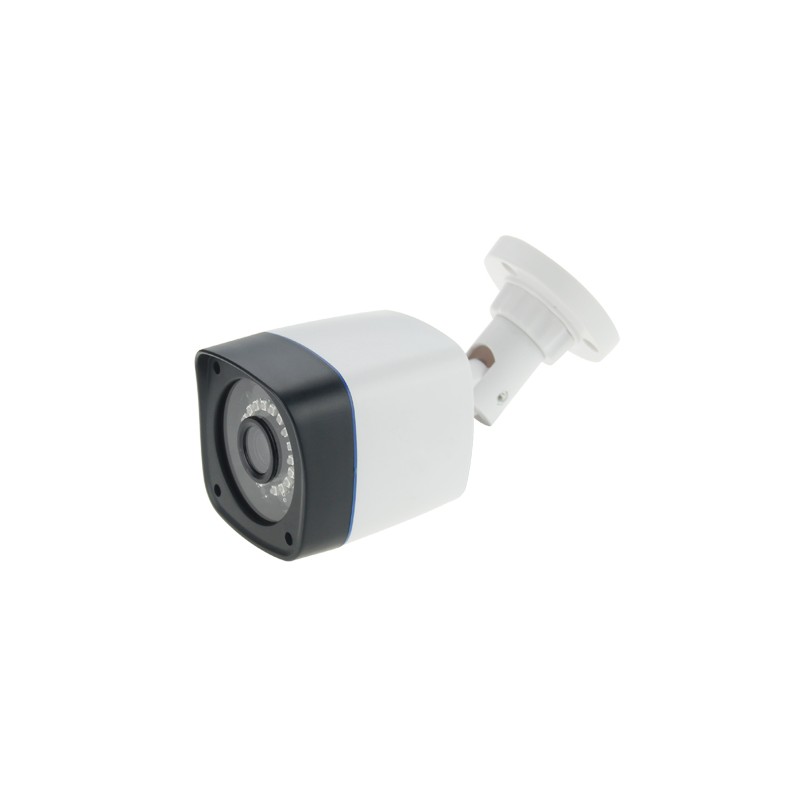

KBCP20HTC100B

Reference: AHD-CP20

Condition: New product

Product will be backorder, please contact us to specify the delivery date.

Video Output	4in1 - AHD/CVI/TVI/CVBS
Image Sensor	OV9732 Color CMOS 720p (1280x720) HD Image Sensor with OmniPixel3-HS™ Technology
Image resolution	05- 720P
Effective Pixels	1280(H)*720(V)
Focus Length	3.6mm
Focus Control	Fixed
Lens Type	Fixed
Pixels	2M Pixels
IR LED	14µ x 18PCS
IR Distance	20M
White Balance	AUTO / MANUAL
Gain Control	AUTO
Noise Reduction	DNR
Picture Adjustment	Yes
WDR	Yes
OSD Support	Yes
UTC	Yes
Housing	IP66
Bracket	Yes
IR Cut Filter	Yes
Power Source	02- DC12V±10%, 500mA
Dimension	27- 160.8(W) x 62(H) x 62(D)mm
Weight	380g
OSD Menu Language	Yes
DSP	04- HTC960E
Electronic Shutter	1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio	≥50dB
TV System	PAL/NTSC
Scanning System	Progressive Scan
Motor Iris Support	NO
IR Status	Under 10 Lux by CDS
IR Power On	CDS Motor Control
Day/Night	Yes
Dual Voltage	No
Heater	No
Operation Temperature	-10℃ ~ +50℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
