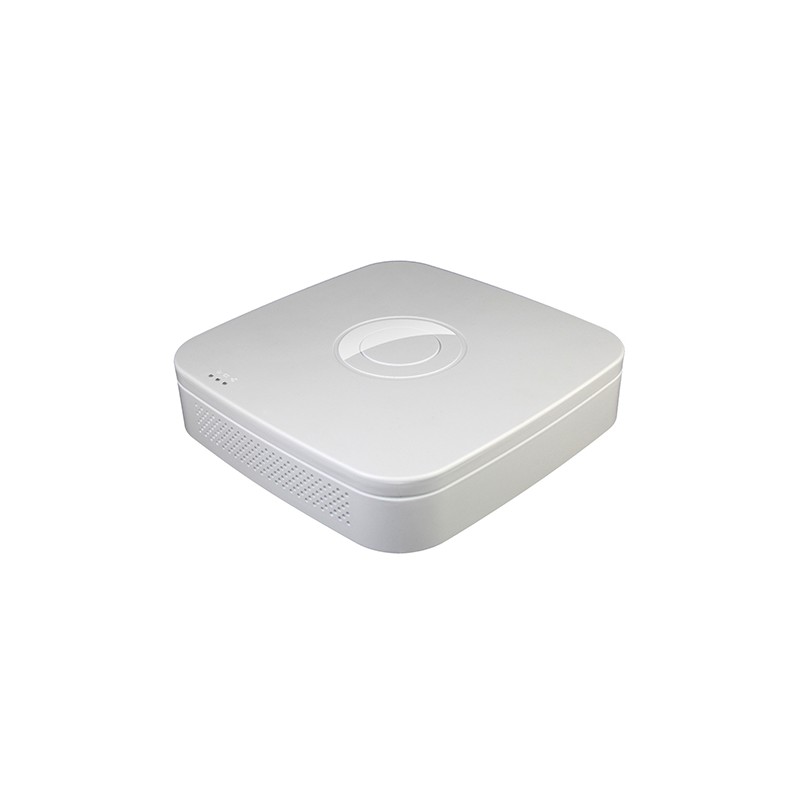

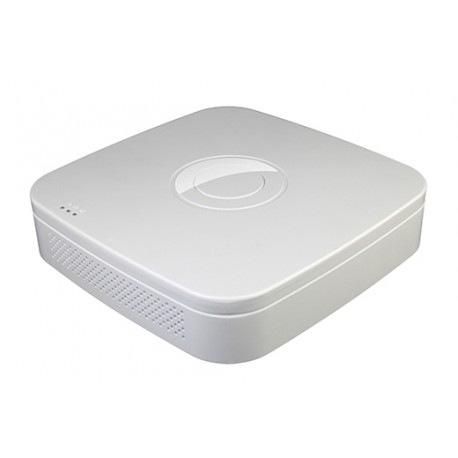

New XVRPA820 View larger

XVRPA820-2TB

XVR

New product

Compression Method: H.264

Preview resolution: 1080P/720P

1xRS422, 2 × USB, 1 × IR Controller, 1xRJ45

Dimensions (L×W×H): 354*280*50(mm)

More details

EGP 168.00

More info

Model XVRPA820
System
Main Processor HI3520DV300
Operating System Embedded LINUX
Video
Input Anolog: 8*1080N
Anolog+Network: 6*Anolog(1080N)+2*network(Max 5MP), 4*Anolog(1080N)+4*network(Max 5MP), 2*Anolog(1080N)+6*network(Max 5MP)
Network: 16*network(Max 5MP)(Total incoming bandwidth
50M)
Input 8CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/Network
Output 1HDMI,1 VGA, 1CVBS
Audio
Input 4Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 8 Channel(max 16 Channel in pure network mode)
Trigger Events Recording,  Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
Display
VGA Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711A
Resolution Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate Half 1080P(960x1080 8*15fps),720P(1280×720 8*15fps), 960H(P:960×576 8*25fps/N:960×480 8*30fps)
Record Mode ManualTimerMotion Detectionalarm
Playback & Backup
Sync Playback Pure Anolog: 4CH 1080N@15fps
Mixture Mode:  4CH 1080N@15fps
Pure Network: 4CH 1080P@30fps, 1CH 5MP
Remote Playback 4 Channel / 1Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 Channel
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8
Extra Stream D1/CIF(1~25fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 2.5"/3.5" SATA, Up to 6TB
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control Support AHD Signal
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V  ≤10W
Working Environment -10~55/10~90%
Dimension (W×D×H) 215*215*53(mm)
Weight 2.0kg (Without HDD)
