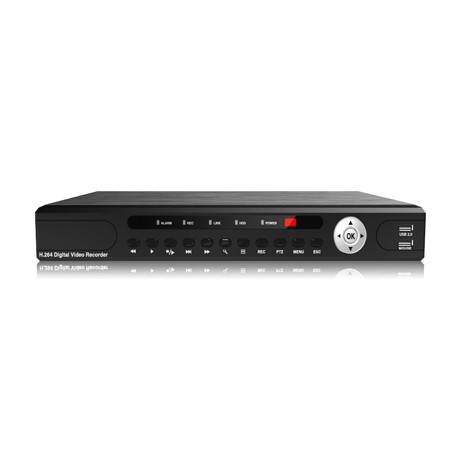

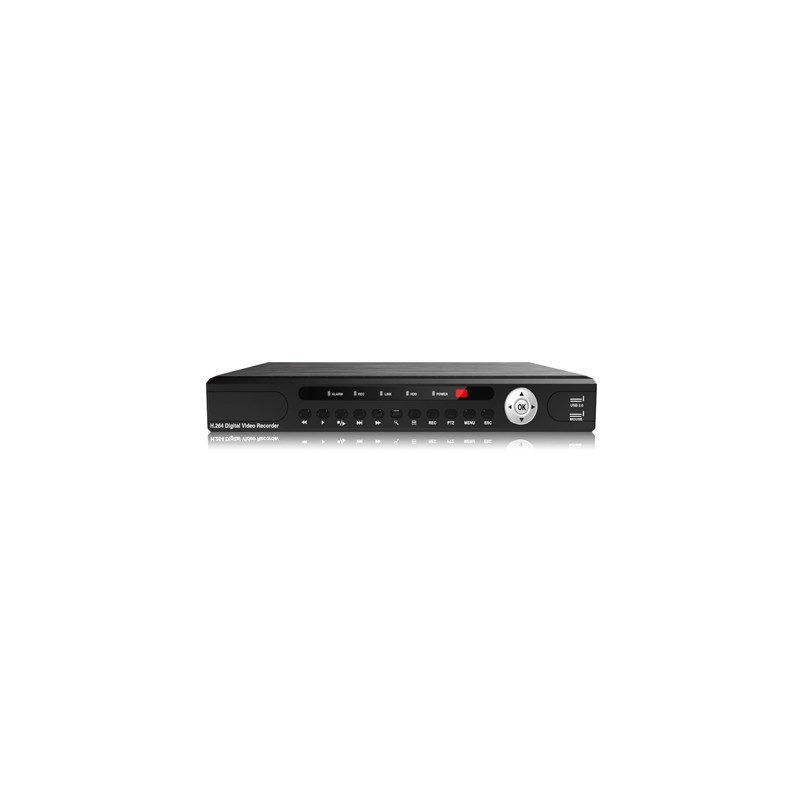

New XVRT1621 View larger

XVRT1621-6TB

XVR

New product

Compression Method: H.264

Preview resolution: 1080P/720P

1xRS485, 2 × USB, 1 × IR Controller, 1xRJ45(10M/100M/1000M adaptive Ethernet interface)Dimensions (L×W×H): 354*280*50(mm)

More details

EGP 496.00

More info

Model XVRT1621
System
Main Processor HI3521A
Operating System Embedded LINUX
Video
Input Anolog: 16*1080N
Anolog+Network: 14*Anolog(1080N)+2*network(Max 8MP), 12*Anolog(1080N)+4*network(Max 8MP), 10*Anolog(1080N)+6*network(Max 8MP), 8*Anolog(1080N)+8*network(Max 8MP), 6*Anolog(1080N)+10*network(Max 8MP), 4*Anolog(1080N)+12*network(Max 8MP), 2*Anolog(1080N)+14*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth
80M)
Input 16CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/Network
Output 1 VGA, 1CVBS,1 HDMI
Audio
Input 4 Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input 4 Channel
Output 1 Channel
Motion Detection 16 Channel
Trigger Events Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display
VGA Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time,  Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711A
Resolution Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate PAL:Half 1080P(960x1080 16*15fps),720P(1280×720 16*15fps), 960H(960×576 16*25fps)
NTSC:Half 1080P(960x1080 16*15fps),720P(1280×720 16*15fps), 960H(960×480 16*30fps)
Record Mode ManualTimerMotion Detection
Playback & Backup
Sync Playback Pure Anolog: 4CH 1080N@15fps
Mixture Mode:  4CH 1080N@15fps
Pure Network: 4CH 1080P@30fps, 2CH 5MP
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 channel
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8/Windows 10
Extra Stream D1/CIF(1~15fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity 3.5" SATA, Up to 12TB
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control Support AHD Signal
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V  ≤10W
Working Environment -10~55/10~90%
Dimension (W×D×H) 354*280*50(mm)
Weight 3.5kg (Without HDD)
