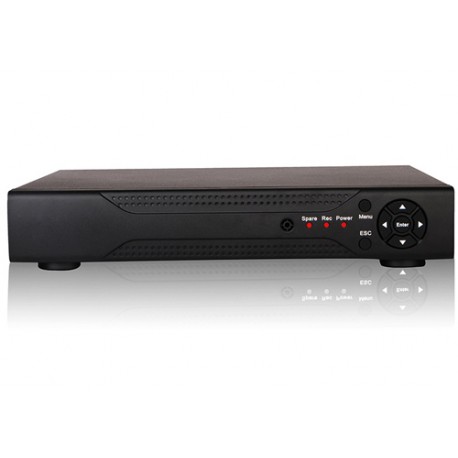

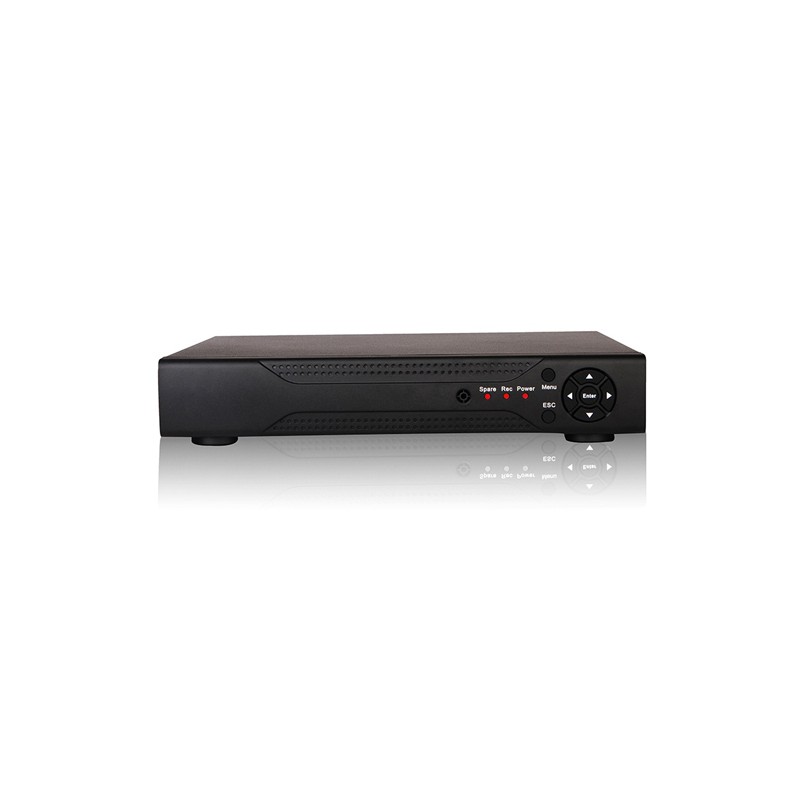

> CK-H9108P
New CK-H9108P View larger

CK-H9108P

NVR

New product

IP Camera Input: 8CH
Incoming Bandwidth: 60MB
Compression Method: H.264
Dimensions (L×W×H): 260*190*43(mm)

More details

EGP 68.00

More info

Model CK-H9108P
System
Main Processor ARM Cortex A9 Processor(HI3520D)
Operating System Embedded LINUX
Video
Input 8CH (1920x1080, 1280×960, 1280×720, etc), Incoming Bandwidth: 60MB
Output 1 VGA, 1 HDMI
Alarm
Sensor Input NO
Output NO
Motion Detection 8 Channel
Email Alarm Support
Display
VGA Resolution: 800×600, 1024×768, 1280x720, 1280×1024, 1920x1080
HDMI Resolution: 1080P(1920×1080)  720P:(1280×720)
Display Split 8 Channel/ 4 Channel / 1Channel
Digital Zoom NO
OSD Camera title, Time, Video loss, Recording, Motion Detection
Recording
Video Compression H.264
Resolution 8CH×1080P/8CHx960P/8CH×720P, etc
Record Rate   PAL :1080P@200fps, 960P@200fps, 720P@200fps, D1@200fps
NTSC:1080P@240fps, 960P@240fps, 720P@240fps, D1@240fps
Record Mode ManualTimerMotion Detection
Playback & Backup
Local Sync Playback 1x1080P
Remote Sync Playback YES
Search Mode ALL, Channel, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P
Onvif Version Support Onvif 2.4
Web Browser IE6-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP / Windows Vista / Windows 7/ Windows 8
Cloud Support(P2P) Yes
Smart Phone iPhone, iPad,  Android, Android PAD
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 6TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
USB Interface 2 USB 2.0 Interfaces
Power Supply DC12V/2A
Working Environment -10~55℃/10~90%
Dimension(W×D×H) 260*190*43(mm)
Weight 2.0KG (without HDD)
