> CK-A9336PN

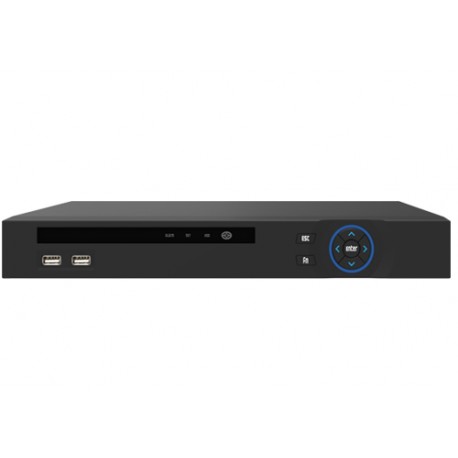

New CK-A9336PN View larger

CK-A9336PN

NVR

New product

IP Camera Input: 36CH
Incoming Bandwidth: 300MB
Compression Method: H.265/H.264
Dimensions (L×W×H): 354*280*50(mm)

More details

EGP 392.00

More info

Model CK-A9336PN
System
Main Processor ARM Cortex A17 Quad-core Processor
Operating System Embedded LINUX
Video
Input 36 Channel, Support 4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc,Incoming Bandwidth: 300MB
Output 1 VGA, 1 HDMI
Audio
Input 1 Port RCA
Output 1 Port RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 36 Channel
Email Alarm Support
Display
VGA Resolution: 1920×1080/1280×1024/1280×720
HDMI Resolution:4K 3840×2160/1920×1080/1280×1024/1280×720
Display Split 36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom YES
OSD Camera Title, Time, Video Loss, Recording, Motion Detection
Recording
Video Compression H.264/H.265
Resolution 4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (704×576/704×480)
Record Rate               PAL :4k@30×25fp,5MP@36×25fp,4MP@36x25fp,3MP@36×25fp,1080P@36×25fp, 960P@36×25fp,720P@36×25fp, D1@36×25fp
                 NTSC: 4k@30×30fp,5MP@36×30fp,4MP@36×30fp,3MP@36×30fp,1080P@36×30fp, 960P@36×30fp, 720P@36×30fp, D1@36×30fp
Record Mode ManualTimerMotion Detection
Playback & Backup
Local Sync Playback 4 channelx4k
Remote Sync Playback YES
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
Network Functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P
Onvif Version Support Onvif 2.4
Web Browser IE6-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP / Windows Vista / Windows 7/ Windows 8
Cloud Support(P2P) Yes
Smart Phone iPhone, iPad, Android, Android Pad
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity Up to 12TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
USB Interface 2 USB 2.0 Interfaces ,1 USB 3.0 Interface
Power Supply DC12V/3A
Working Environment -10~55℃/10~90%
Dimension(W×D×H) 354mm×280mm×50mm
Weight 4.5KG (without HDD)
