> CK-PA9104POE

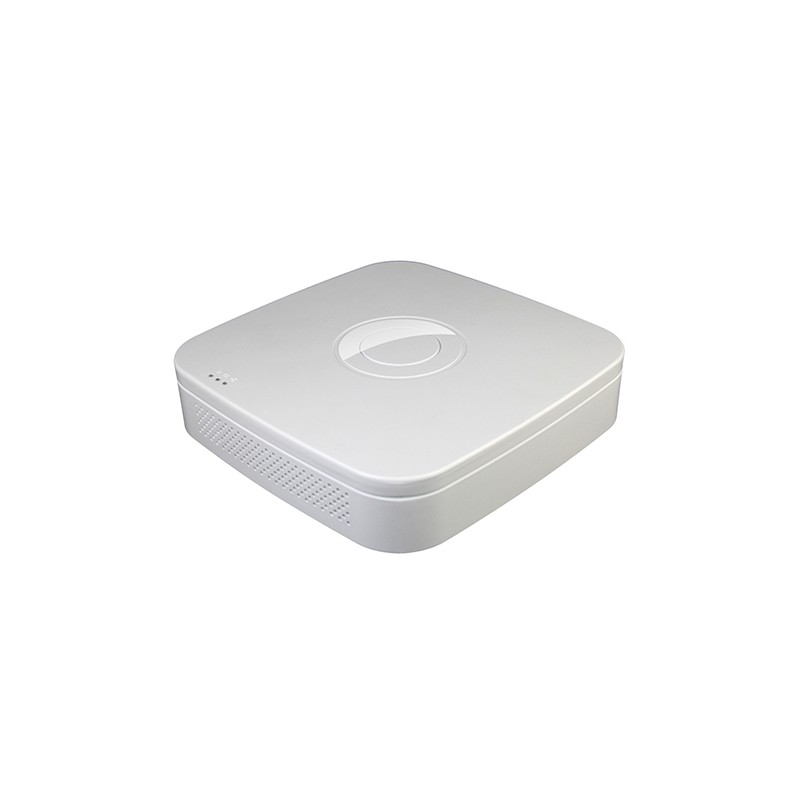

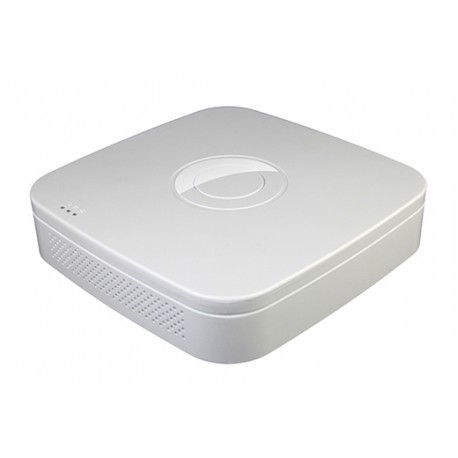

New CK-PA9104POE View larger

CK-PA9104POE

NVR

New product

IP Camera Input: 9CH
Incoming Bandwidth: 46MB
Compression Method: H.264
Dimensions (L×W×H): 215*215*53(mm)

More details

EGP 172.00

More info

Model CKPA9104POE
System
Main Processor ARM Cortex A9 Processor(HI3520D)
Operating System Embedded LINUX
Video
Input 9CH (1920x1080, 1280×960, 1280×720, etc), Incoming Bandwidth: 46MB
Output 1 VGA, 1 HDMI
Alarm
Sensor Input NO
Output NO
Motion Detection 9 Channel
Email Alarm Support
Display
VGA Resolution: 1024×768、1280×720、1280×1024
HDMI Resolution: 1080P(1920×1080)  720P:(1280×720)
Display Split 9 Channel  / 4 Channel / 1Channel
Digital Zoom NO
OSD Camera title, Time, Video loss, Recording, Motion Detection
Recording
Video Compression H.264
Resolution 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480)
Record Rate   PAL :1080P@225fps, 960P@225fps, 720P@225fps, D1@225fps
NTSC:1080P@270fps, 960P@270fps, 720P@270fps, D1@270fps
Record Mode ManualTimerMotion Detection
Playback & Backup
Local Sync Playback 2CH@1080P/4CH@720P
Remote Sync Playback YES
Search Mode ALL, Channel, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play
Backup Mode USB Device/Network
Network
Interface 5 x RJ45 (10M/100M Adaptive Ethernet Interface)
Network Functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P
Onvif Version Support Onvif 2.4
Web Browser IE6-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8
Cloud Support(P2P) Yes
POE 4 x Independent 100Mbps POE Network Interfaces(Output Power≤15.4W per Interface)
Smart Phone iPhone, iPad,  Android, Android PAD
Hard Disk Driver
Interface Type 1 SATA Interface ,2.5"/3.5" SATA
Capacity Up to 6TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
USB Interface 2 USB 2.0 Interfaces
Power Supply DC48V  1250mA
Working Environment -10~55℃/10~90%
Dimension(W×D×H) 215*215*53(mm)
Weight 2.0KG (without HDD)
