Highlight supermarket ceil installed Electronic Wireless Camera People Counter

Condition: New product

We support customer-flow analysis for retail industry, gallery, park, scenic spots,transportation junction, crowded square and so on.

More details

More info

Brand Name: HIGHLIGHT Model Number: HPC008 Experience: Alibaba 14-year gold supplier, 18-year EAS/people counter manufacturer Certificated: CE/ISO approved Size: 18.9*14.5*5.8 CM Video Definition: Adjustable Measuring Range: 2m Installation Height: 2.5-5.1m video people counter device: video people counter device System Support: WinXP/ 2000/ 7/ 8 system Market: Retail industry, gallery, park, scenic spots,transportation junction Function: Very detailed & summarized

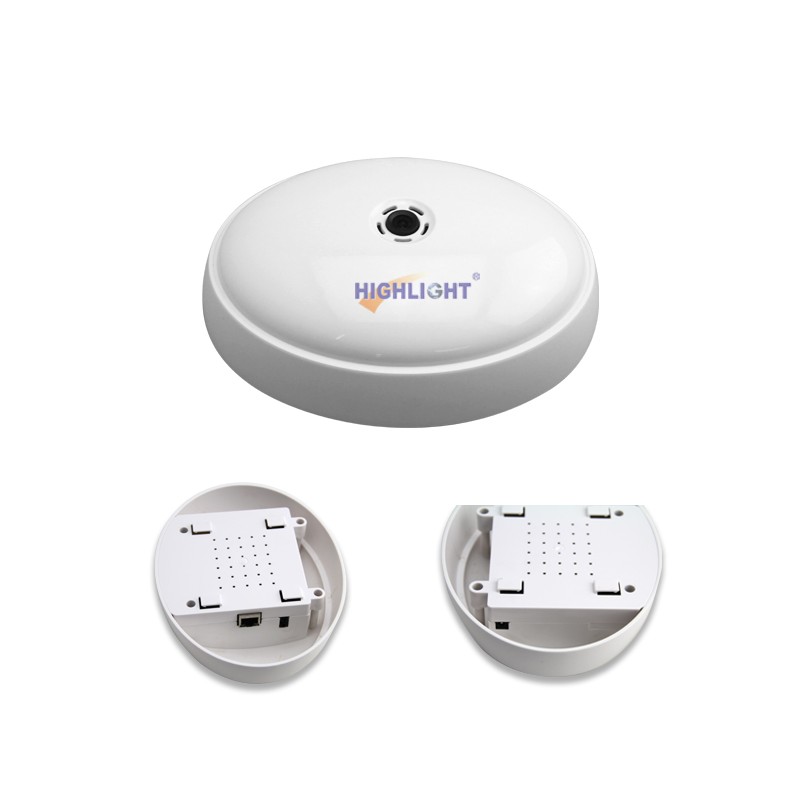

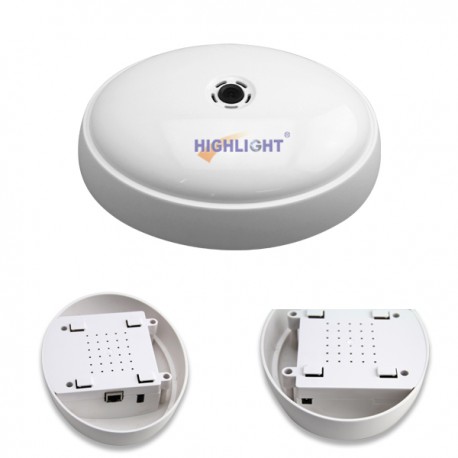

Highlight supermarket ceil installed Electronic Wireless Camera People Counter

Highlight supermarket ceil installed Electronic EAS Wireless Head People Counting Machine/ video people counter device HPC008HPC008

Product Description

Market

We support customer-flow analysis for retail industry, gallery, park, scenic spots,transportation junction, crowded square and so on.

Specifications

Items	Highlight HPC008 Camera People Counter
Size	18.914.55.8 CM
Processor	ARM cortex A7>1GHz(28 nm)
Sensor	Video Input	Cmos/ Simplexhigh Definition
	Video Compression standard	H.264, YUY2
	Video Definition	Adjustable
	Image Processing	Exposure Control/ Gain Control/ White Balance/ Gamma Correction
	Video Frame rate	30 fps
	Measuring Range	2 m
	Installation Height	2.5-5.0 m
Port Protocol	Network Interface	RJ45, 10M/100M (Adaptive to Ethernet port)
	Protocol Standard	802.11a or 802.11b/g
	Maintenance Interface	Micro USB
	SD card	Built-in, 8G~32G
	Electronic Clock	Built-in, RTC module
	Remote Upgrade	Upgrade By The Website
Physical Parameter	Size	12012048 mm
	Weight	200g
	Adapter	+5V/2A
	Power	≤10W/ POE(optional)
	Hardware Monitoring	Hardware Watchdog
	Temperature	-20℃~+65℃

Model

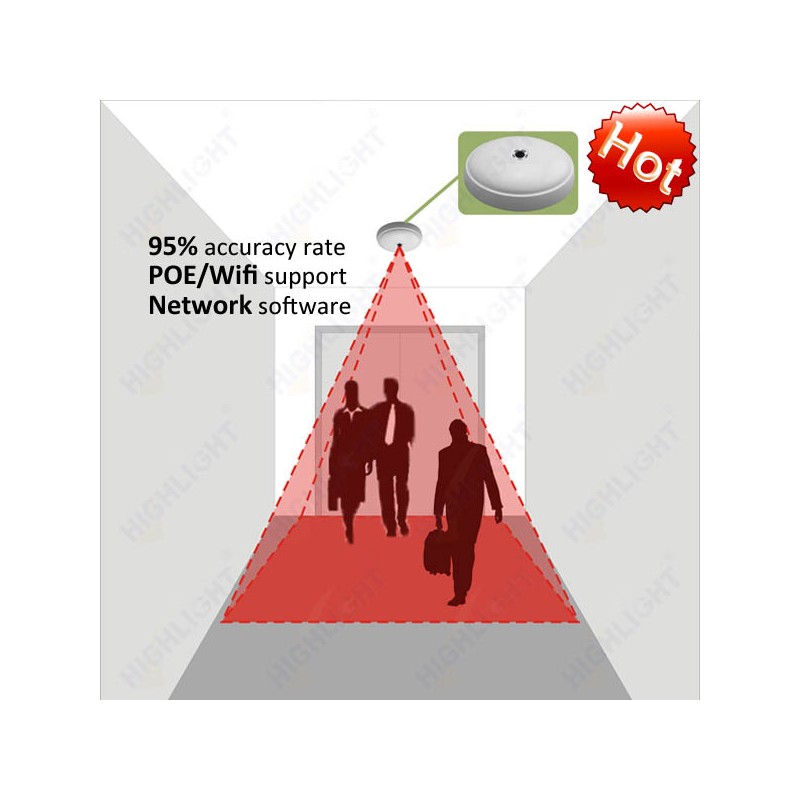

To get a more accurate data, we use different lens for different ceiling height, details as below:

Model	Installation Height
HPC008-2.1	2.6--2.8 M
HPC008-2.5	2.8--3.0 M
HPC008-2.8	3.0--3.2 M
HPC008-3.6	3.2--4.0 M
HPC008-4	4.0--4.6 M
HPC008-6	4.6--5.1 M
	The critical height, advised to choose a large lens
Remark	This test results is based on persons of average 1.7M
	Effective width detection 2M

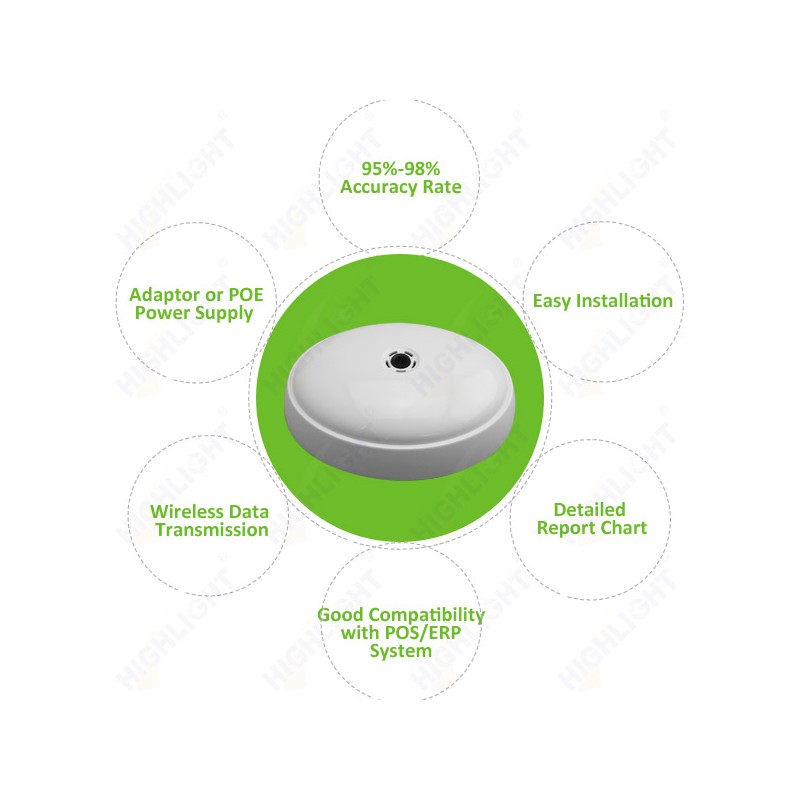

Advantages of HPC008

High accuracy rate	95%-98% 1. It counts according to person's head, so it can solve the problem when people walking shoulder by shoulder. 2. It eliminate the invalid pass by seting a counting area. 3. Different camera for different height of ceil.
Data safety	1. Network-off protection: The data can be saved in the device for 5 days, even there is no network. 2. The data can be exported in PNG, JPG, PDF form. 3. Data backup: When the IP address is changed, the data can be backed up.
Data transmission	1. The data can be transferred to server directly. 2. It can work in wifi network.
Data report	1. Detailed valid in-out-stay data. 2. Data from different entrances in different shops can be distinguished. 3. Sales info can be inputed manually. It is convenient for shop to make the commercial solution. 4. With a API, the data can be integrated into POS/ ERP system.
Power supply	Adaptor or POE as your requirement.
