Model Number: DS84C PLATEN SCANNING WINDOW: 3.3' x 3.2' (86mm x 81mm) FLAT FINGERS SCANNING AREA: 3.2' x 3.0' IMAGE SIZE: 1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED) IMAGE QUALITY: FBI IAFIS IQS App. F ANS IMAGE RESOLUTION: 500 dpi, 256 gray ACQUISITION SPEED: > 28 fps for slap (Preview mode) > 25 fps for rolled DIMENSIONS: 148mm x 152mm x 148mm
Warning: Last items in stock!
Availability date:

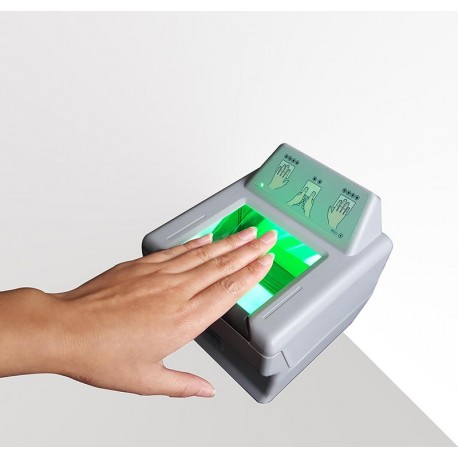

The DS84c is a 3.2" x 3.0" 10-prints and rolls Livescan at 500 dpi certified by the FBI according to FBI IAFIS IQS App. F. as Livescan System as well as for Identification Flats
* FBI APP. F CERTIFIED
With up to 27 frames per second for 4-slaps and up to 25 frames per second for rolled prints acquisition the DS84c is unique in terms of acquisition speed. An ergonomic design combined with an easy-to-integrate SDK architecture makes the DactyScan84c the perfect choice for system integrators and solution providers.
*10-PRINTS AND ROLLED ACQUISITION
A user interface based on 12 three color leds facilitates the acquisition procedure by indicating the fingerprint(s) to be acquired and providing quality feedback thus eliminating the necessity for skilled operators and therefore increasing workflow efficiency.
The DS84c is available as OEM module for all system integrators looking for a compact 10-print Livescan to be physically integrated in embedded solutions.
*SPOOFING AND LIVENESS DETECTION
As optional module, DS84c can be upgraded with a leading edge SW solution detecting fake fingers made with various different materials. GB_FFD add-on can be used on existing DS84c as well as on new installations.
PLATEN SCANNING WINDOW
|
3.3' x 3.2' (86mm x 81mm)
|
FLAT FINGERS SCANNING AREA
|
3.2' x 3.0'
|
ROLLED FINGERS SCANNING AREA
|
1.6' x 1.5'
|
IMAGE SIZE
|
1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED)
|
IMAGE QUALITY (Standards compliance)
|
FBI IAFIS IQS App. F ANSI/NIST-ITL 1-2007/2011 ANSI/NIST-ITL 1-2000 ANSI/NIST-ITL 1-2000 Interpol Implementation ISO/IEC FCD 19794-4
|
IMAGE RESOLUTION
|
500 dpi, 256 gray
|
ACQUISITION SPEED
|
> 28 fps for slap (Preview mode) > 25 fps for rolled
|
DIMENSIONS
|
148mm x 152mm x 148mm
|
WEIGHT
|
1.4 kg
|
INTERFACE
|
USB 2.0 (Data & Power supply)
|
CERTIFICATIONS
|
CE,FCC,RoHS,KCC and ISO 60950-1
|
LED INTERFACE
|
YES
|
TEMPERATURE
|
0°C to 50°C (Operating) -20°C to 50°C (Storage)
|
HUMIDITY
|
From 10 to 90% (Non condensing)
|
IP RATING
|
IP54
|
OPERATING SYSTEM
|
Windows, Linux, Android
|
MOUNTING
|
Ready to be installed on a counter top
|
ANTISPOOFING (FFD/LFD)
|
Patented GB_FFD software - Option
|
ADDITIONAL SOFTWARE
|
DSMatch SW - Option
|
